Antunes JD-2 Industrial Air Pressure Switch Blue Spring 0.07" -1.7" W.C. 1/8" NPT

Antunes JD-2 Industrial Air Pressure Switch Blue Spring 0.07" -1.7" W.C. 1/8" NPT
Images for general purposes only. Actual may be different than depicted.
Antunes JD-2 Industrial Air Pressure Switch Blue Spring 0.07" -1.7" W.C. 1/8" NPT Antunes JD-2 Industrial Air Pressure Switch Blue Spring 0.07" -1.7" W.C. 1/8" NPT

Antunes JD-2 Industrial Air Pressure Switch Blue Spring 0.07" -1.7" W.C. 1/8" NPT

SKU: JD-2-BLUE
Rating:
Quantity Price Stock
111
111
$100.95     /ea
111
0
$0.00
0
$0.00
0
JD-2-BLUE

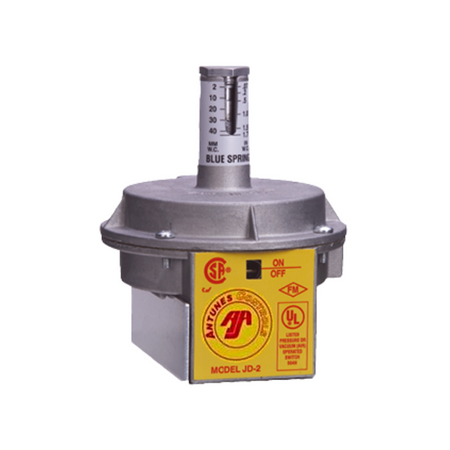

The Antunes JD-2 is a compact SPDT air pressure switch with a 1/8” NPT connection.  This rugged die-cast aluminum device has a blue spring with a 0.07" to 1.7" W.C. range.  UL Recognized, FM Approved, and CSA Listed.

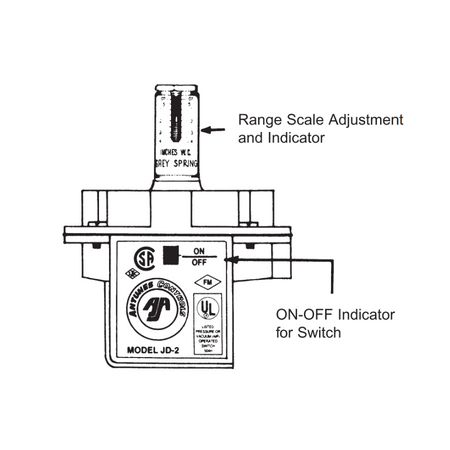

The air pressure switch features a dual scale, a sensitive diaphragm, an adjustable spring, and a visible on-off indicator that provides accuracy and reliability.  This component is suitable for differential, vacuum, and pressure.

Check out the following available JD-2 air pressure switch models below:

Switch
JD-2R
JD-2P
JD-2O
JD-2G
Model Number
801111303
801111310
801111315
801111302
Spring Types
Red
Purple
Orange
Grey
Adjustable Spring Range
0.1" to 24" W.C. (3 mm to 600 mm)
0.1" to 10" W.C. (3 mm to 250 mm)
5.0" to 35" W. C. (125 mm to 875 mm)
0.1" to 4" W.C. (3 mm to 102 mm)
Maximum Pressure Surge 3 PSIG
Adjustable Spring Range 0.07" to 1.7" W.C.
Minimum Ambient Operating Temperature -20°F (-28°C)
Material Die-Cast Aluminum
Maximum Operating Pressure 35" W.C.
Connection Size 1/8" NPT
Maximum Ambient Operating Temperature 140°F (60°C)
Reset Type Automatic
Switch Type SPDT
Approvals UL Recognized, FM Approved &CSA Listed

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Is there any difference between a Antunes JD2 switch with a blue spring or a switch with a grey spring other than the spring itself
Asked on Nov 10, 2017 by Bill from Alliston Ontario Canada
1 Answers

Have an answer? Click Here

A:
The JD-2 switch body and function are the exact same.  The only difference is the Spring Range.  The JD-2 Grey Spring operates at a pressure range of 0.1” to 4” W.C., and the JD-2 Blue Spring has a range of  0.07" - 1.7" W.C.
Replied on Nov 10, 2017 by Ori from Industrial Stores
